DIY Outdoor Kitchen Plans | Grill Station Bar & Sink Cabinet Woodworking Blueprint PDF

Build a complete modular outdoor kitchen with these step-by-step woodworking
plans — a three-component outdoor kitchen diy system featuring a grill station,
bar counter, and sink cabinet designed for serious backyard cooking and entertaining.

This diy outdoor kitchen project is built around a 32-inch drop-in grill using
standard dimensional lumber available at any hardware store. The bbq grill station
component sits at the center, flanked by an outdoor bar plans counter with framed
cabinet doors and a full outdoor sink plans cabinet — all three connecting with
L-shaped brackets for a seamless, professional outdoor cooking area finish.

The bbq cart plans layout keeps your prep zone, grill table plans surface, and
storage all within arm's reach. Two framed cabinet doors on the bar and sink units
swing open for full access, while lower shelf space in the wooden grill cart and
grill components handles everything from propane tanks to cookware. The griddle
stand diy section includes clearance guidance for both gas and electric setups.

Whether you're planning a low budget kitchen ideas diy build or a fully equipped
patio kitchen ideas setup, these diy kitchen cabinets style plans scale to your
space and budget. The outdoor bbq kitchen frame uses 4x6 and 4x4 posts, 2x4
framing, and 2x10 and 2x12 tops — the same kitchen plans diy approach used in
professional outdoor kitchen layouts worldwide.

Looking for outdoor kitchen plans covered with a shed or pavilion roof? The
modular framing method adapts directly to a kitchen shed or backyard bar with
shed plans overhead structure. The same posts and framing work as a foundation
for a 4.6x12 grill shed, an enclosed outdoor grill station, or a pavilion bbq
build with minor extensions.

The bbq kitchen plans package also covers rustic outdoor kitchen ideas finishes —
cedar siding, board-and-batten cladding, and exterior stain options that weather
beautifully over time. The outdoor kitchen blueprints include a full outdoor
kitchen frame plans section with 3D assembly diagrams at every key stage, making
this one of the most complete outdoor grill stations resources available in this
format.

Want a covered setup? The outdoor kitchen plans covered section of the build
notes walks you through adding a simple lean-to roof over the grill station pdf
layout — no new foundation required. Pair it with an outdoor bar grill setup and
you've got a full backyard entertaining station that rivals any outdoor kitchens
home decor showroom installation.

Estimated materials cost: $1,300–$4,300 depending on region and grill choice.

📐 DIMENSIONS:
Layout: three modular components connecting with L-shaped brackets
Grill cutout: sized for 32-inch drop-in grill (adjustable to your model)

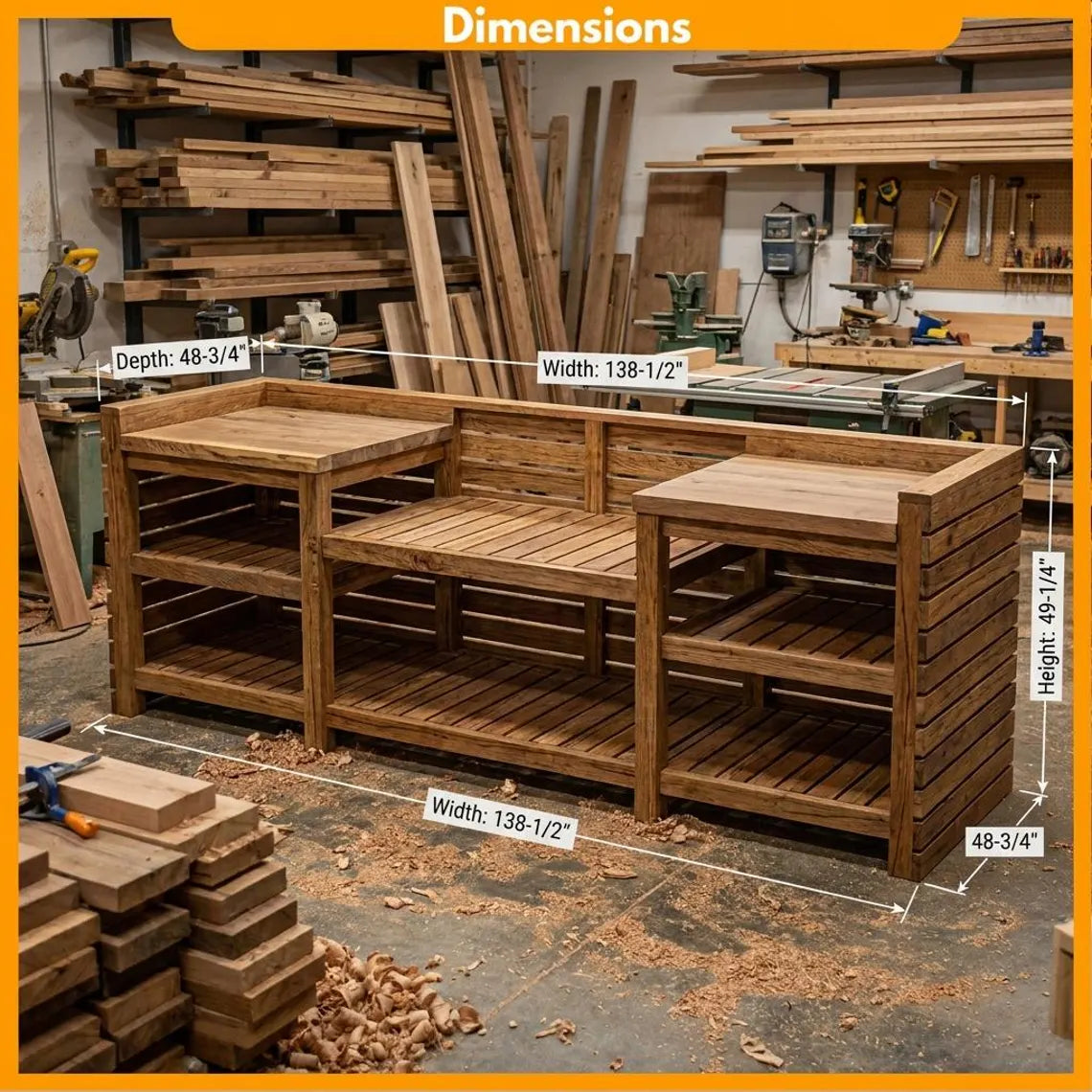

Full dimension diagram included in listing images

📦 WHAT'S INCLUDED:
Step-by-step written instructions with 3D assembly diagrams
Complete tools list and materials list
Lumber shopping list and precise cut lists
Beginner-friendly build sequencing
Direct support if questions come up

⚠️ Imperial units only — inches and feet, no metric version.
Download via Etsy on a web browser — the Etsy mobile app does not support file downloads.
This is a plan only — all lumber, hardware, grill, sink, and plumbing parts sourced separately.
Use exterior-grade finish and recoat periodically for long-term outdoor durability.
Always follow grill manufacturer clearance and ventilation requirements and check local codes.

— DIGITAL DOWNLOAD ONLY —
PDF delivered instantly to your Etsy account after purchase.
No physical items, hardware, or lumber are shipped.
