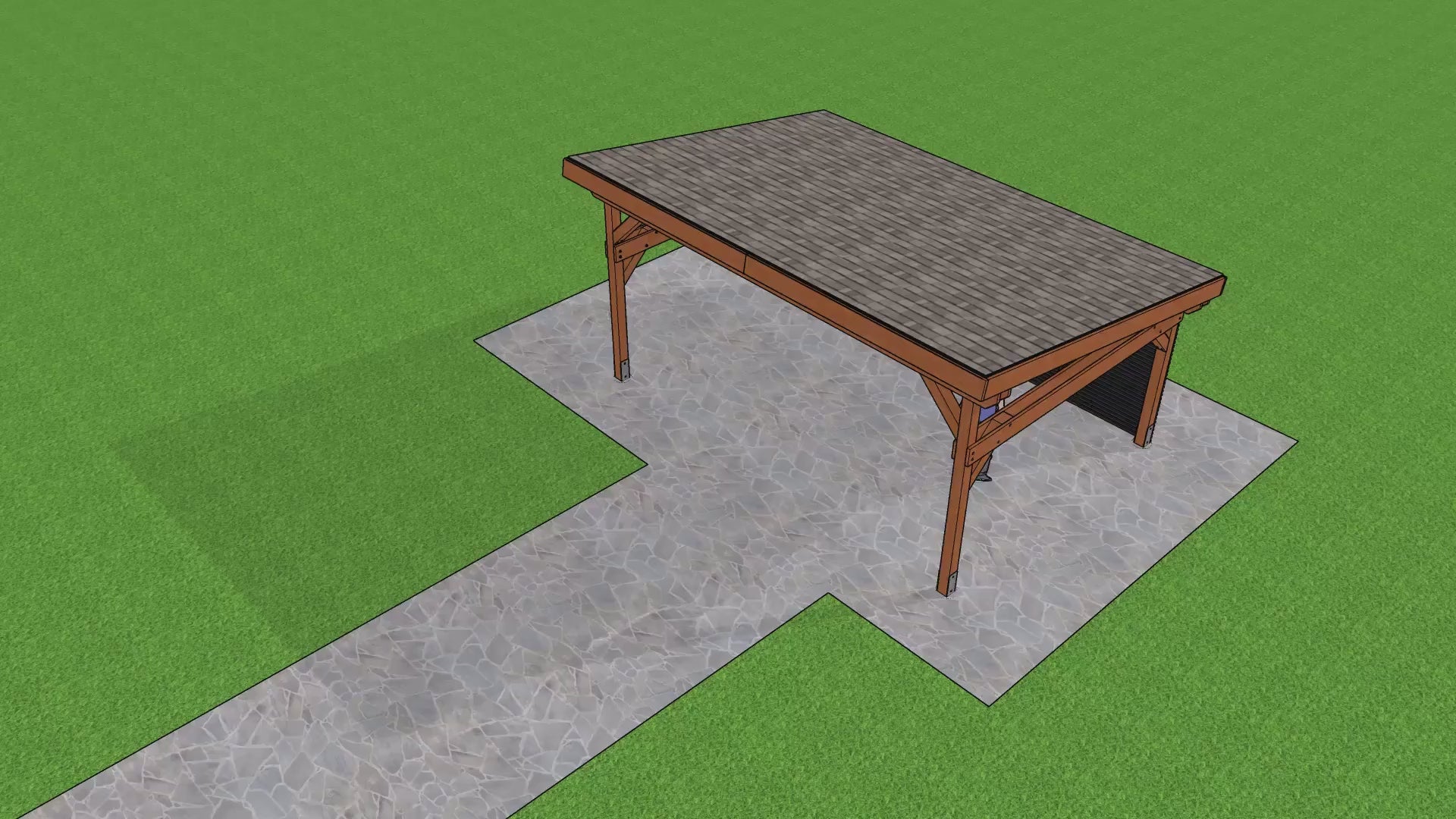

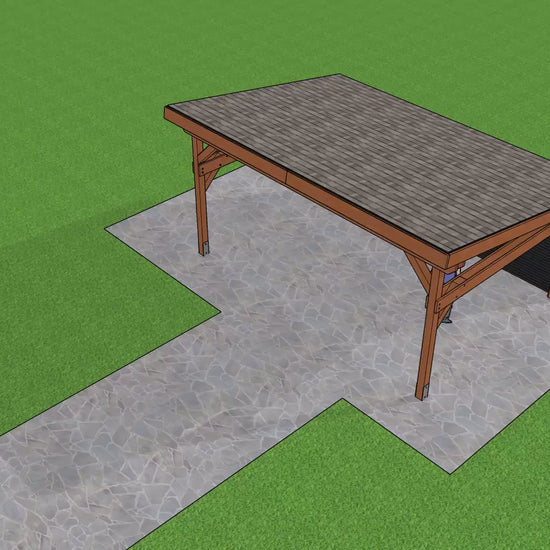

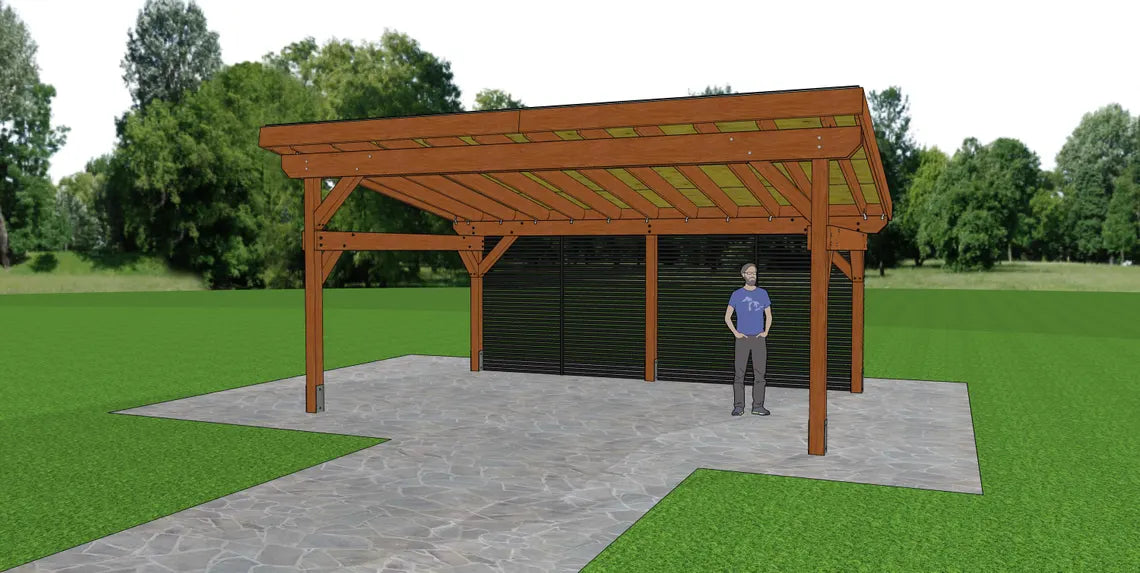

14x20 Lean to Pavilion Plans, DIY Outdoor Gazebo Woodworking Plans

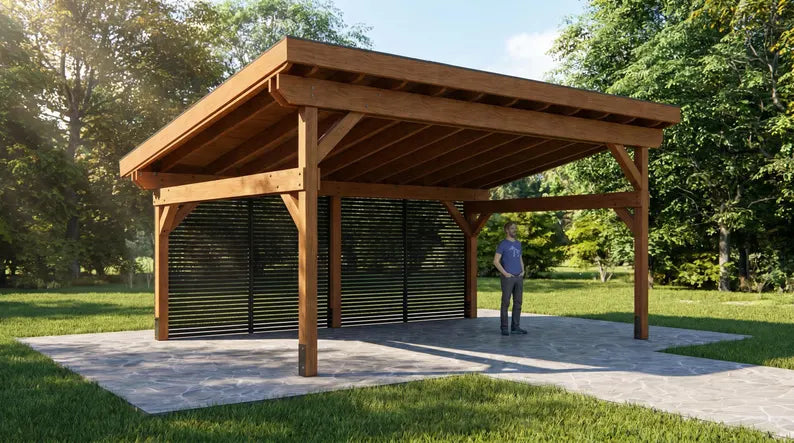

If you’re looking for a high-end, structural centerpiece for your backyard, patio, or poolside, this Lean-to Pavilion is the ultimate solution. Designed with a modern architectural aesthetic, this 14'x20' structure combines a premium look with heavy-duty durability, serving as a stunning focal point for outdoor kitchens, lounging areas, or dining spaces.

✨ WHY CHOOSE THESE PLANS?

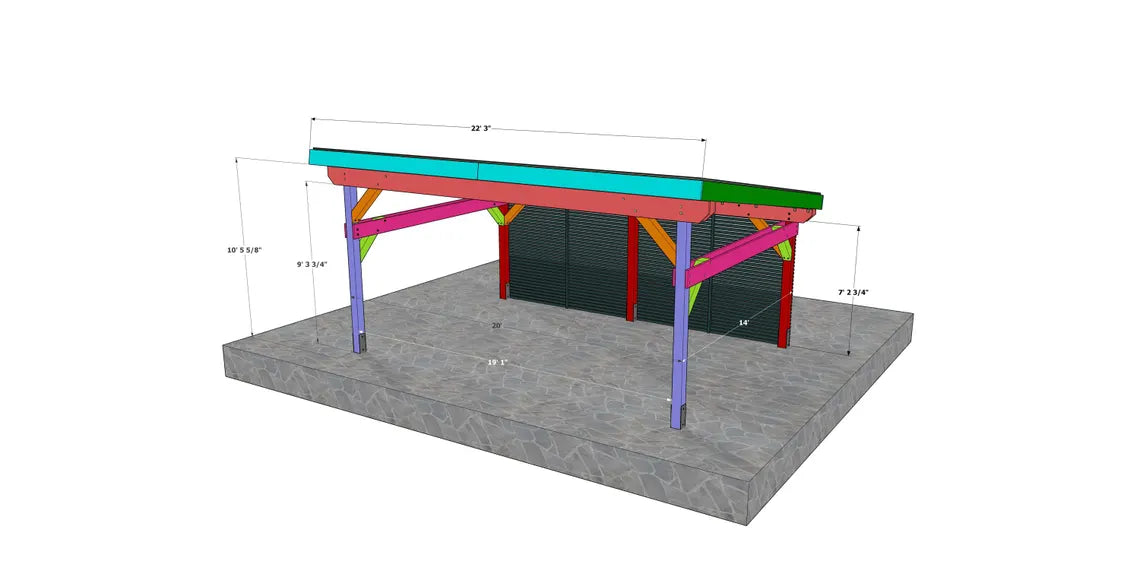

These plans are designed to be clear and easy to follow, making your build smooth and stress-free. With precise measurements and detailed 3D diagrams, you can build with confidence. Everything is laid out simply to help you create a high-quality, sturdy structure that looks great in any backyard. Every dimension is double-checked for accuracy to ensure your project looks like a custom-crafted masterpiece.

🛠 PROJECT SPECIFICATIONS:

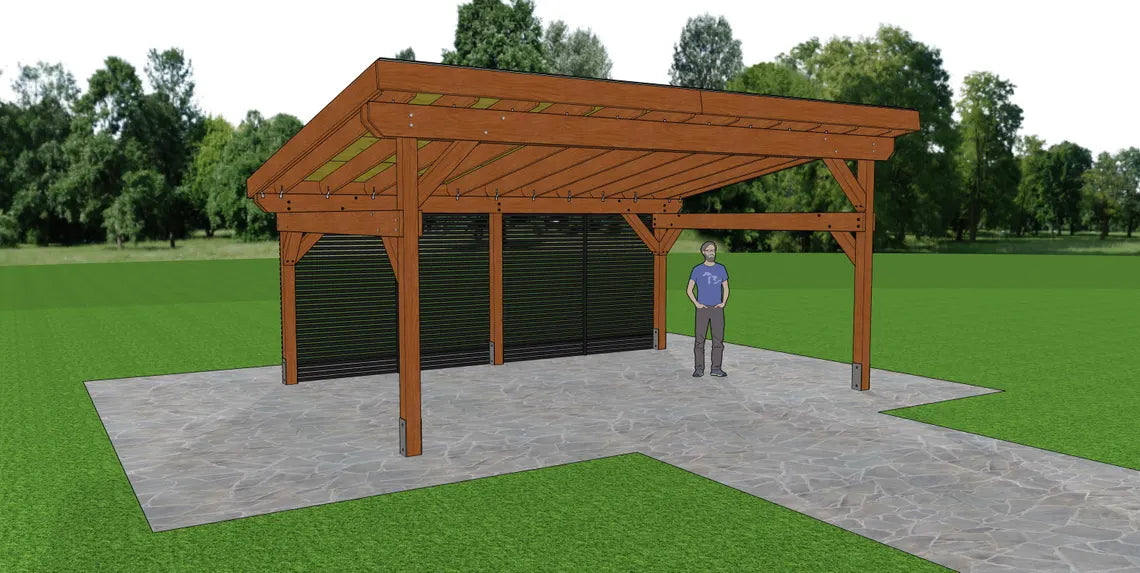

Design: Heavy-duty Lean-to construction featuring 6x6 posts, 2x12 main beams, and decorative 2x2 privacy slats for a modern finish.

Durability: Engineered for stability with long/short knee braces and H2.5A rafter ties to withstand the elements.

Materials: Optimized for standard dimensional lumber (6x6, 2x12, 2x10) and hardware available at major retailers like Home Depot or Lowe's.

Versatility: Perfectly suited as a patio cover, outdoor kitchen shelter, poolside cabana, or a luxury carport.

📂 WHAT YOU WILL RECEIVE:
This is a DIGITAL DOWNLOAD (PDF). No physical item will be shipped. Your high-quality architectural-grade manual includes:

Complete Cut List: Detailed breakdown of every board length to minimize wood waste and save you money.

Material & Hardware List: A full shopping list including specific screw counts (3" wood screws), carriage bolts, and rafter ties.

Step-by-Step 3D Instructions: Clear, easy-to-follow diagrams for every stage of the build, from foundation post-setting to the final asphalt shingle installation.

Pro-Tips: Expert advice on miter-cutting rafter tails, spacing decorative slats, and ensuring a perfectly level roof pitch.

🛒 HOW IT WORKS:

Purchase the listing.

After payment is confirmed, you will be redirected to the download page.

Click “Download”, save the file to your computer, and print it out or view it on your tablet in the workshop!

⚠️ PLEASE NOTE:

This sale is for Digital Plans only. Lumber, tools, and hardware are not included.

Due to the nature of digital products, all sales are final (no refunds).

These plans are for personal use or for building a finished product to sell.

Questions? Feel free to send me a message! I’m happy to help you with your build.
